Product Description:
Upgrade your lighting with the SJLITE SB T8 Reflected Batten V-Type, a high-performance and energy-efficient solution ideal for commercial, industrial, and residential applications. Designed for durability and excellent light distribution, this batten fitting supports Single, Double, or Triple T8 fluorescent or LED tubes, offering flexibility for your lighting needs.
Built with a V-Type reflector, this batten maximizes light output while minimizing energy consumption. The IP20-rated enclosure is suitable for indoor installations, and its Class 1 electrical protection ensures safety and reliability in everyday use.
Key Features:
-
Model: SB T8 Reflected Batten V-Type
-
Voltage: 240V
-
IP Rating: IP20 (Indoor Use)
-
Class 1 Protection for added safety
-
Tube Configuration: Supports Single, Double, or Triple T8 Tubes
-
Reflector Type: V-Type for enhanced brightness and efficiency
-
Ideal for: Offices, Warehouses, Retail Stores, Garages, Workshops
Specifications
Wattage (W): SINGLE : 36W
DOUBLE 36Wx2
TRIPLE : 36Wx3
Voltage (V): 240V
IP Rating: IP20
Type: T8 REFLECTED BATTEN V-TYPE
Application: corridors, carparks, stair, garages, schools and etc

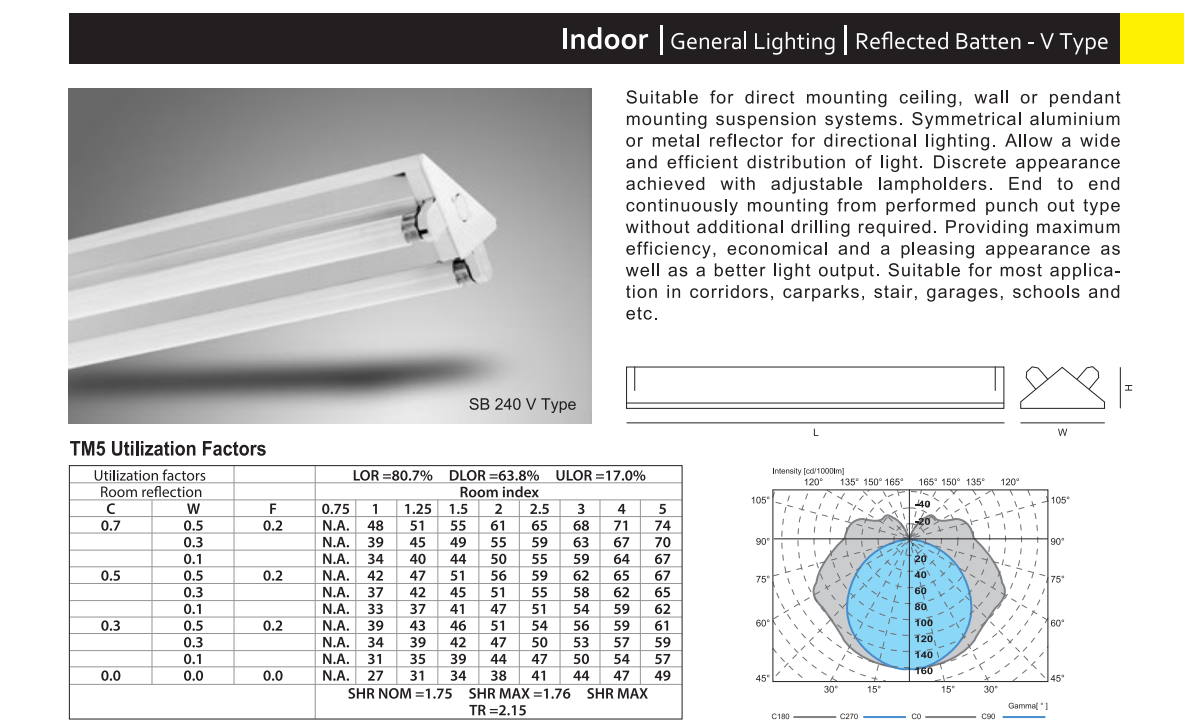

Features: Suitable for direct mounting ceiling, wall or pendant mounting suspension systems. Symmetrical aluminum or metal reflector for directional lighting. Allow a wide and efficient distribution of light. Discrete appearance achieved with adjustable lampholders. End to end continuously mounting from performed punch out type without additional drilling required. Providing maximum efficiency, economical and a pleasing appearance as well as a better light output.
